Customized made competitive price pressure roof solar water heating system for home

FOB Reference Price:Get Latest Price
$130.00 - $180.00 / Set | 2 Set/Sets (Min. Order)
Type:
Pressurized U Pipe Vacuum Solar Collector Manifold Collector
Application:
Water Heater Air Conditioning System Solar Thermal
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Samples:
$999.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Ensun
Model Number:
HSC-9
Pipe Material:
Copper
Name:
pressure roof solar water heating system for home
Black:
silver
Origin:
China
Port:
Shanghai/Ningbo
Brand name:
ENSUN
Size:
customized
Logo:
OEM
Item:
pressure roof solar water heating system for home
Supply Ability
Supply Ability:
100000 Set/Sets per Quarter pressure roof solar water heating system for home
Packaging & Delivery
Packaging Details
pressure roof solar water heating system for home
Export carton for full container,
Port
Shanghai/Ningbo
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description

- Click here get free samples



Product Description


Solar collector working principle:

1. The heat pipe series solar collector are always connected with existing heating supply device.

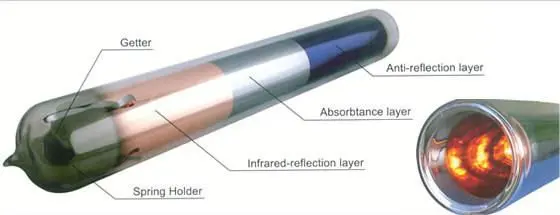

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy

and transfers heat to the heat pipes by aluminium fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base

of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector

is heated by the sun.

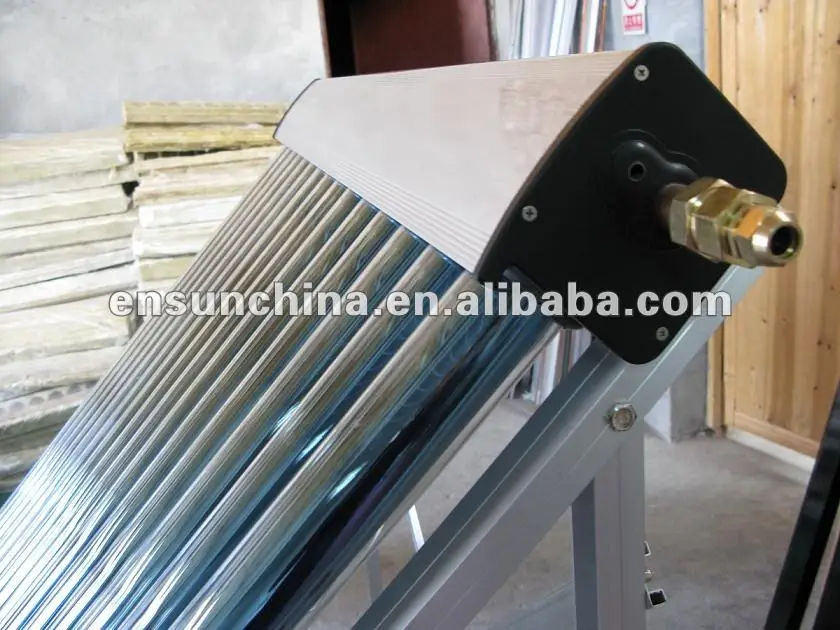

Solar collector specification:
1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2.0mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm
4. Insulation layer: 45mm thickness glass firber /polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy
















































Specification:
Manifold connections(mm/inch)3/4” or 1/2” optional
Test pressure(Mpa)1
Operating fluid pressure(Mpa)0.6
Max.service temperature(degree)95
Max.stagnation temperature(degree)200
Distance from tube to tube(mm)75
Flow range recommendation(l/m2h)50-150
Insulation thickness(mm)25
Optimal installation angle20-70º vertical,-5º to +5º horizontal
Insulationcompressed glass wool-k=0.041W/mk
Optimal flow rate0.1L/min/tube-0.026G/min/tube
Header pipe99.93% pure copper & lead free 45% silver brazing
Manifold casing materialAluminium(grade 3A21)
Advantages:
1.New manifold,more stronger;
2.The frame can be adjusted;
3.Easy installation;
4.Tail stock support is made of stainless steel or aluminum alloy.
Feature:
1.the water is heated by the heat pipe rapidly
2.there is no water in the vacuum tube,so the tube will nat break in winter
3.it can be combined with the architecture perfectly
4.it can be combined with existing pipeline
5.it will be affected by the local water quality.it doesn’t suit hard water
6.it can still work in event of occasional tube breakage


4g.jpg36020120224093958780sides32










Solar collector applications:
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
